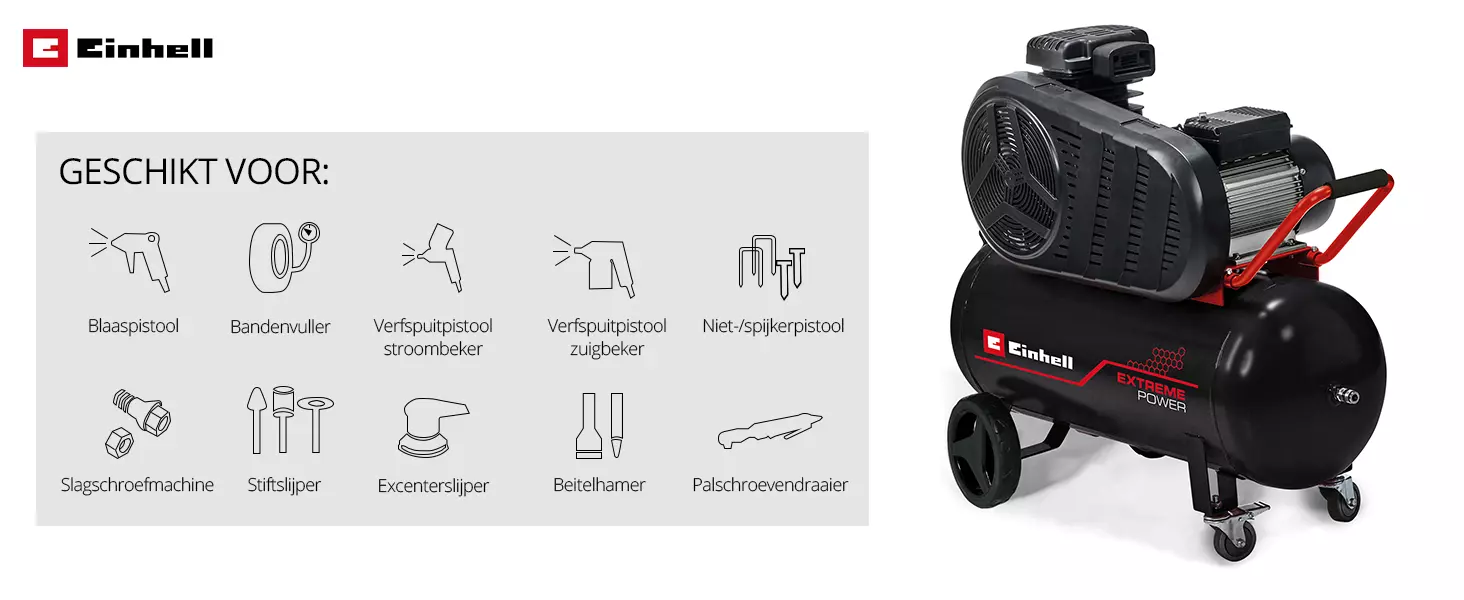

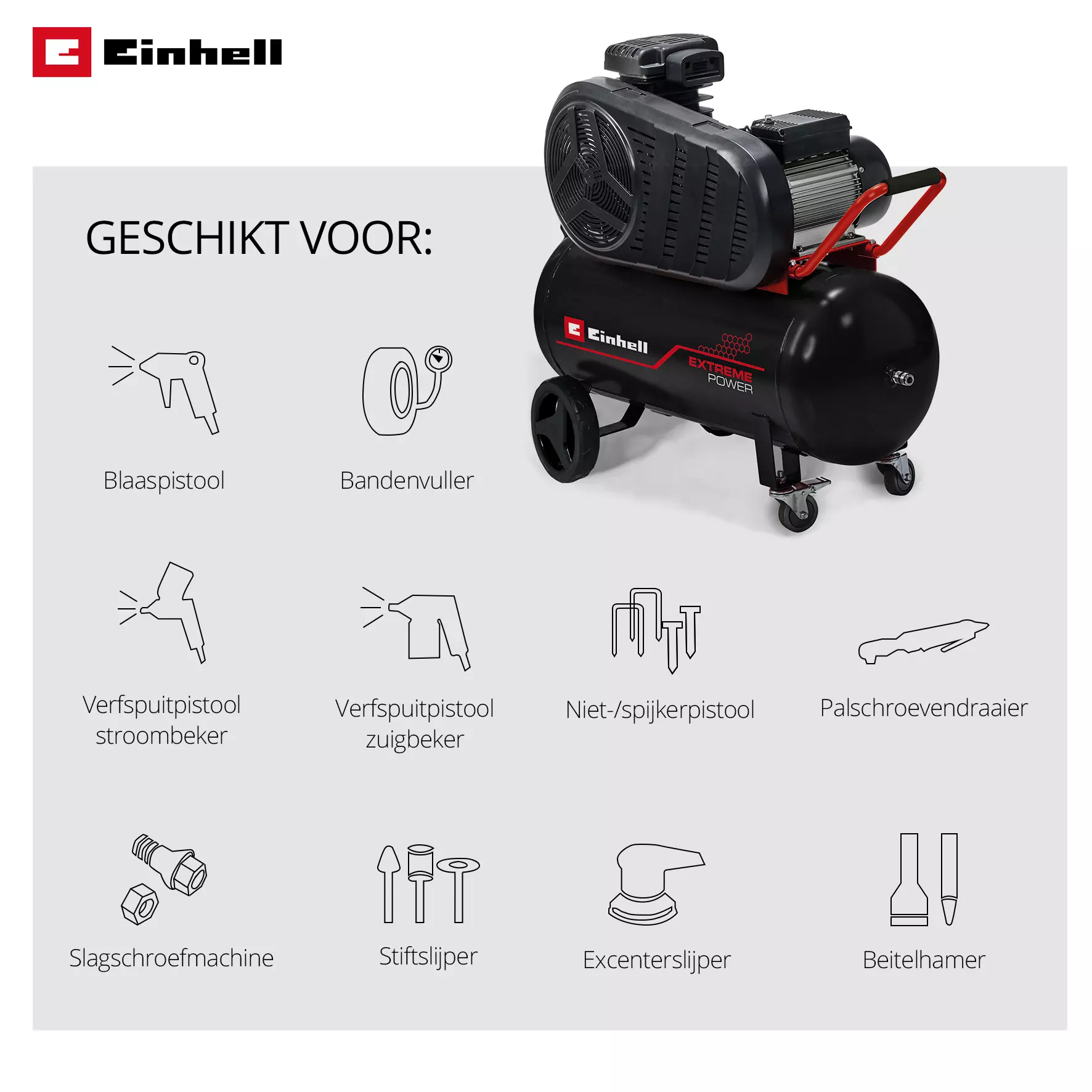

Compressor

TE-AC 430/90/10

Artikelnummer:4010800EAN-Code: 4006825642339
  • High-performance compressor with V-belt drive
  • Belt drive ensures low speed and quiet operation
  • Long life thanks to oil lubricated pump & high quality components
  • Oil level check through a window
  • The 90 l tank provides sufficient air reserves for prolonged jobs
  • High air flow & long durability thanks to double compressor unit
  • Applications up to 10 bar can be set using the pressure reducer
  • Pressure gauge & quick-release coupling for regulated pressure
  • Pressure gauge & quick-release coupling for unregulated pressure
  • 2 large wheels and 2 castors with one locking brake
  • 10 years warranty against rusting through of the tank
  • Non-return valve, safety valve
  • The drain plug enables user-friendly maintenance
Meer informatie
einhell-expert-air-compressor-4010800-productimage-101
Productomschrijving

With the Einhell compressor TE-AC 430/90/10 and the right tools to go with it, you can apply lacquer and paint in next to no time and apply preservative oil to small or large surfaces on wood. The high-performance compressor with V-belt drive and 3,000 W (4.1 HP) makes it possible to use a whole range of new tools, the belt drive ensures a low speed and smooth operation, and the 90 l tank provides plenty of air reserves for prolonged jobs. Many applications up to a maximum of 10 bar, including blow-cleaning or sand-blasting jobs, can be set by the pressure reducer. This allround helper also effortlessly inflates car, motorbike and cycle tires, as well as balls and air mattresses. The double compressor unit and the V-belt drive assure a high output power. The oil lubrication of the pump and high quality components contribute to a long life for the compressor. The oil level can be checked through a window. Safety during operation is ensured by the non-return and safety valve. There is an integrated pressure gauge and a quick-release coupling for regulated working pressure and unregulated tank pressure. Einhell is convinced of the quality and provides a ten year rust-through warranty for the tank. For mobility and a secure holding position there are two large wheels and two castors with one locking brake. The drain plug on the compressor enables user-friendly maintenance.

Technische specificaties

Voeding220-240 V | 50 Hz
Max. Motorvermogen3000 W 4.1 PS
Motortoerental2850 min^-1
Onbelast toerental1020 min^-1
Zuigvermogen430 L/min
Uitgangsvermogen bij 0 bar230 L/min
Uitgangsvermogen bij 4 bar210 L/min
Uitgangsvermogen bij 7 bar200 L/min
Max. Werkdruk10 bar
Inhoud Ketel90 L
Aantal Cylinders2 Pieces
Geluidsniveau Lpa73 dB (A)
Geluidsniveau LWA93.5 dB (A)
